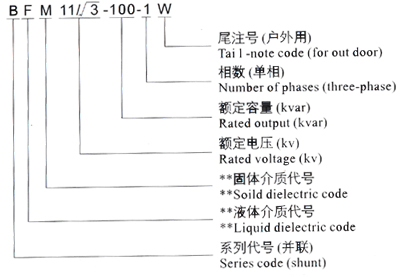

源創電氣告訴我們高壓并聯電容器型號說明 MODEL MEANINGS |
|
|
|
 |
|
|
高壓并聯電容器主要技術參數 MAIN TECHNICAL CHARACTERISITICS |
|
產品 code |
產品型號 Rated voltage(kv) |
額定電壓 Rated voltage |
額定容量 Rated capacity (KVar) |
額定電容 Rated capacity |
相數 Number of phases |
| 1 | BAM0.75-18-1W | 0.75 | 18 | 101.9 | 1(3) |
| 2 | BAM0.75-20-1W | 0.75 | 20 | 113.2 | 1(3) |
| 3 | BAM0.75-25-1W | 0.75 | 25 | 141.5 | 1(3) |
| 4 | BAM0.75-30-1W | 0.75 | 30 | 169.8 | 1(3) |
| 5 | BAM1.05-30-1W | 1.05 | 30 | 86.6 | 1(3) |
| 6 | BAM1.05-50-1W | 1.05 | 50 | 144.1 | 1(3) |
| 7 | BAM1.05-60-1W | 1.05 | 60 | 173.2 | 1(3) |
| 8 | BAM1.05-100-1W | 1.05 | 100 | 288.7 | 1(3) |
| 9 | BAM3.15-200-1W | 3.15 | 100 | 32.1 | 1(3) |
| 10 | BAM3.15-200-1W | 3.15 | 200 | 64.2 | 1(3) |
| 11 | BAM6.3-12-1W | 6.3 | 12 | 0.95 | 1(3) |
| 12 | BAM6.3-14-1W | 6.3 | 14 | 1.1 | 1(3) |
| 13 | BAM6.3-16-1W | 6.3 | 16 | 1.2 | 1(3) |
| 14 | BAM6.3-1-1W | 6.3 | 18 | 1.4 | 1(3) |
| 15 | BAM6.3-30-1W | 6.3 | 30 | 2.4 | 1(3) |
| 16 | BAM6.3-40-1W | 6.3 | 40 | 3.2 | 1(3) |
| 17 | BAM6.3-50-1W | 6.3 | 50 | 4.0 | 1(3) |
| 18 | BAM6.3-80-1W | 6.3 | 80 | 6.4 | 1(3) |
| 19 | BAM6.3-100-1W | 6.3 | 100 | 8.0 | 1(3) |
| 20 | BAM6.3-150-1W | 6.3 | 150 | 12.0 | 1(3) |
| 21 | BAM10.5-50-1W | 10.5 | 50 | 1.4 | 1(3) |
| 22 | BAM10.5-80-1W | 10.5 | 80 | 2.3 | 1(3) |
| 23 | BAM10.5-100-1W | 10.5 | 100 | 2.9 | 1(3) |
| 24 | BAM10.5-150-1W | 10.5 | 150 | 4.3 | 1(3) |
| 25 | BAM10.5-200-1W | 10.5 | 200 | 5.8 | 1(3) |
| 26 | BAM10.5-337-1W | 10.5 | 334 | 9.6 | 1(3) |
| 27 | BFM11/3-14-1W | 11/3 | 12 | 0.95 | 1(3) |
| 28 | BFM11/3-14-1W | 11/3 | 14 | 1.1 | 1(3) |
| 29 | BFM11/3-16-W | 11/3 | 16 | 1.3 | 1(3) |
| 30 | BFM11/3-18-1W | 11/3 | 18 | 1.4 | 1(3) |
| 31 | BFM11/3-30-1W | 11/3 | 30 | 2.4 | 1(3) |
| 32 | BFM11/3-40-1W | 11/3 | 40 | 3.2 | 1(3) |
| 33 | BFM11/3-50-1W | 11/3 | 50 | 3.95 | 1(3) |
| 34 | BFM11/3-80-1W | 11/3 | 80 | 6.3 | 1(3) |
| 35 | BFM11/3-100-1W | 11/3 | 100 | 7.9 | 1(3) |
| 36 | BFM11/3-150-1W | 11/3 | 150 | 11.8 | 1(3) |
| 37 | BFM11/3-200-1W | 11/3 | 200 | 15.3 | 1(3) |
| 38 | BFM11/3-334-1W | 11/3 | 334 | 26.4 | 1(3) |
| 39 | BFM11-16-1W | 11 | 16 | 0.42 | 1(3) |
| 40 | BFM11-18-1W | 11 | 18 | 0.47 | 1(3) |
| 41 | BFM11-30-1W | 11 | 30 | 0.79 | 1(3) |
| 42 | BFM11-40-1W | 11 | 40 | 1.1 | 1(3) |
| 43 | BFM11-50-1W | 11 | 50 | 1.3 | 1(3) |
| 44 | BFM11-100-1W | 11 | 100 | 2.6 | 1(3) |
| 45 | BFM11-200-1W | 11 | 200 | 5.3 | 1(3) |
| 46 | BFM11-334-1W | 11 | 334 | 8.8 | 1(3) |
| 47 | BFM12-30-1W | 12 | 30 | 0.66 | 1(3) |
| 48 | BFM12-40-1W | 12 | 40 | 0.88 | 1(3) |
| 49 | BFM12-50-1W | 12 | 50 | 1.1 | 1(3) |
| 50 | BFM12-80-1W | 12 | 80 | 1.8 | 1(3) |
| 51 | BFM12-100-1W | 12 | 100 | 2.2 | 1(3) |
| 52 | BFM12-150-1W | 12 | 150 | 3.3 | 1(3) |
| 53 | BFM12-200-1W | 12 | 200 | 4.4 | 1(3) |
| 54 | BFM12-300-1W | 12 | 300 | 6.6 | 1(3) |
| 55 | BFM12-334-1W | 12 | 334 | 7.4 | 1(3) |
|
源創電氣告訴我們注：尾號“1”表示單相，"3"表示三相，帶"G"表示在高原地區使用；本公司可根據客戶的需求定做不同規格尺
|
